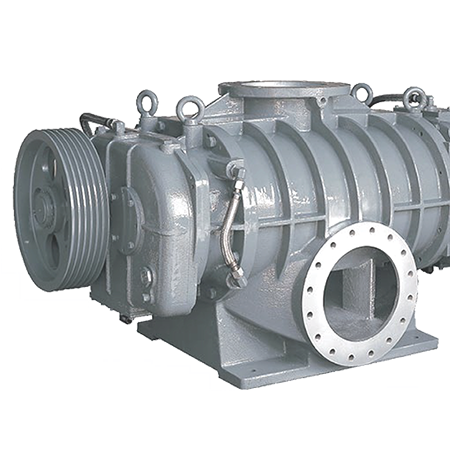

SANCO SCB SERIES

SCB

FEATURES

          It is generally recognized that air blowers product hight operation noise due to impact and pulsation when it sucks and discharges air in a gust. The Sanco model SCB Series and SCBV Series rotary blower incorporates a 3-lobe spur type rotor. that greatly lowers noise by a structure that continuously conveys air. Another characteristic of the 3-lobe rotor is that reduces torque fluctuation and stabilizes flow volume.
        All air blowers are built and checked annually following the strictes adhesion to ISO 9001 and CE quality standards, involving the use of our highly precise and regularly maintained CNC machinery. Scrupulous attention is paid to every detail, in a specialized field where technical errors should be kept to a bare minimum.

APPLICATIONS

  • Aeration in sewage or industrial wastewater treatment plants
  • For air-lift pumps in sewage or industrial wastewater treatment plants
  • Oxygen supply at aquariums and fish frams
  • Pneumatic conveyer

MAJOR STANDARD SPECIFICATION

Blower Fluid Type of Fluid Temperature Air 0-40 'C
Components Rotor Shaft Seal Bearing 3-lobe Spur type Labyrinth Ball or Roller Bearings
Materials Rotor Casing Shaft Gear Gray Iron Casting Gray Iron Casting Carbon Steel Chromium Molybdenum Steel
Type Air Cooled Package 1,000 to 8,000 mmAq pressure requirement
Water Cooled Package 8,000 to 10,000 mmAq pressure requirement "Please contact your local dealer for more information and model.
Motor Type No. of poles Voltage Indoor-use, drip-proof type 4-pole 3-phase.220,380,400 415,440 460 volt
SCB

ACCESSORIES

  • Common Base
  • Indoor use Drip-proof Motor
  • Suction Silencer

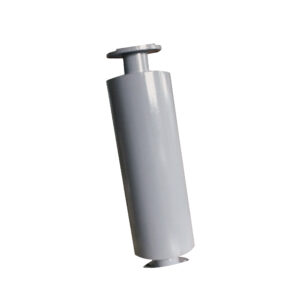

  • Discharge Silencer
  • V-Belt and Belt Cover

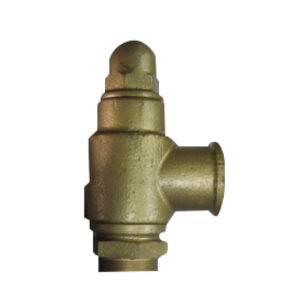

  • Relief Valve

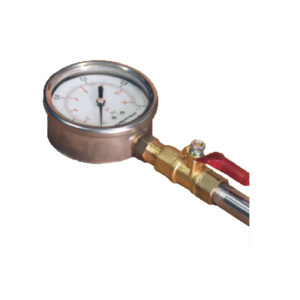

  • Pressure Gauge

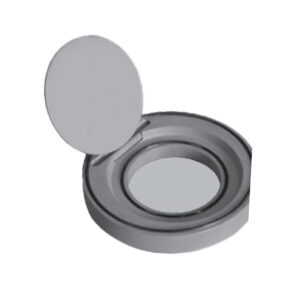

  • Check Valve

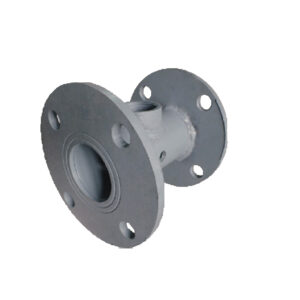

  • “T” Joint

OPTIONS

  • Foundation Bolts
  • Expansion Joint
  • Gate Valve
  • Acoustic-Hood
  • Vibration-Isolation Base with
  • Rubber Feet

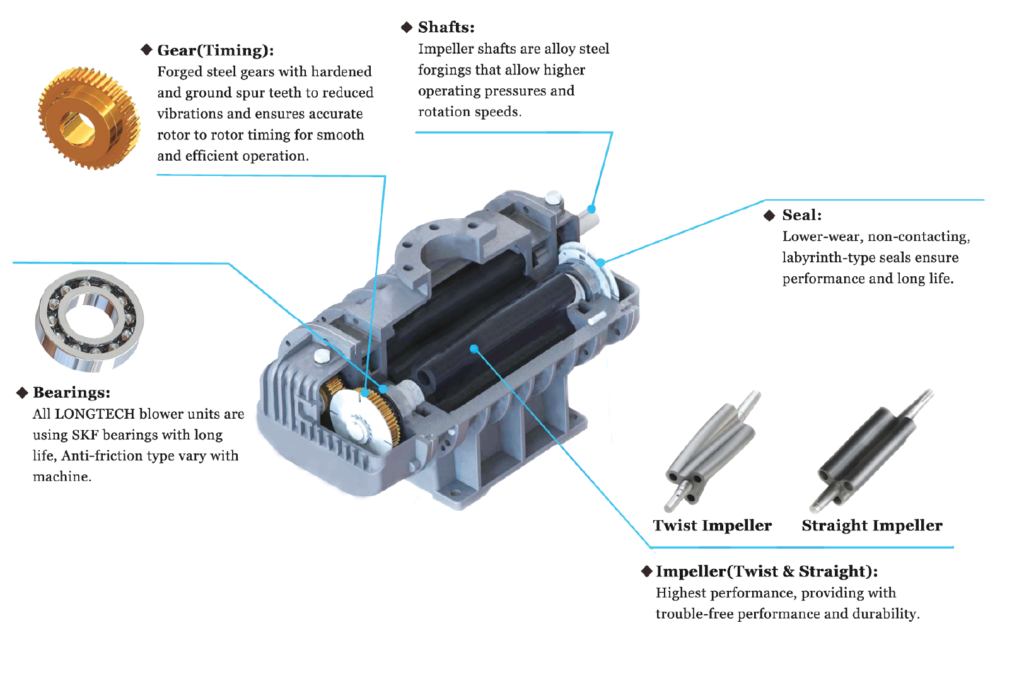

MAIN PARTS

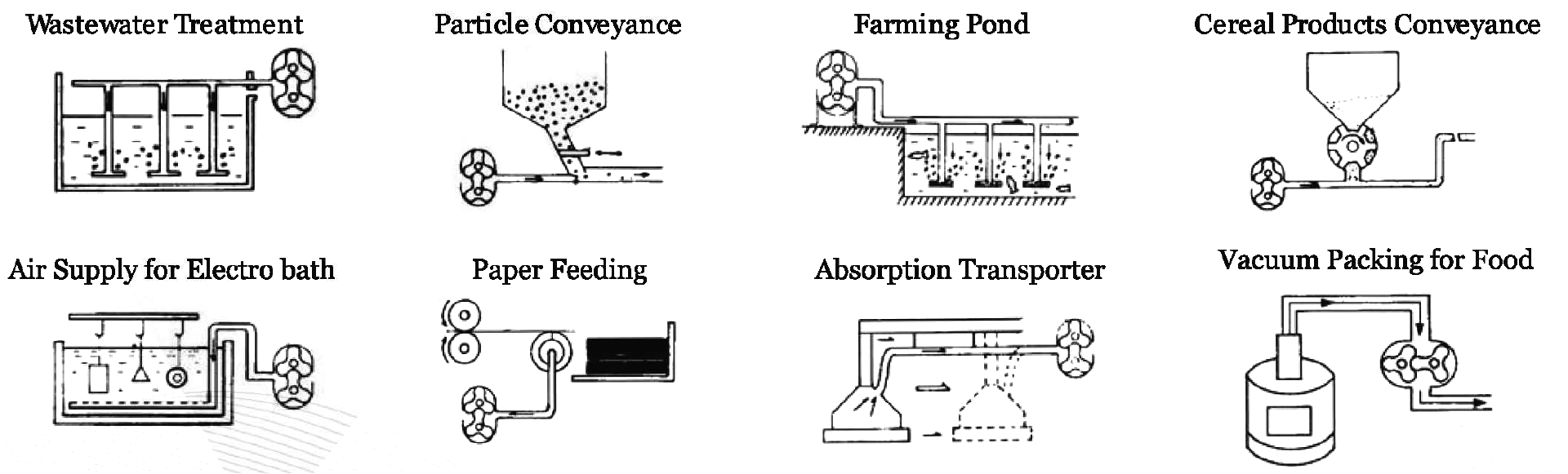

APPLICATION AREA

          Other application will not showing out. Please contact with authorized local dealer or sales representative.

ADVANTAGE

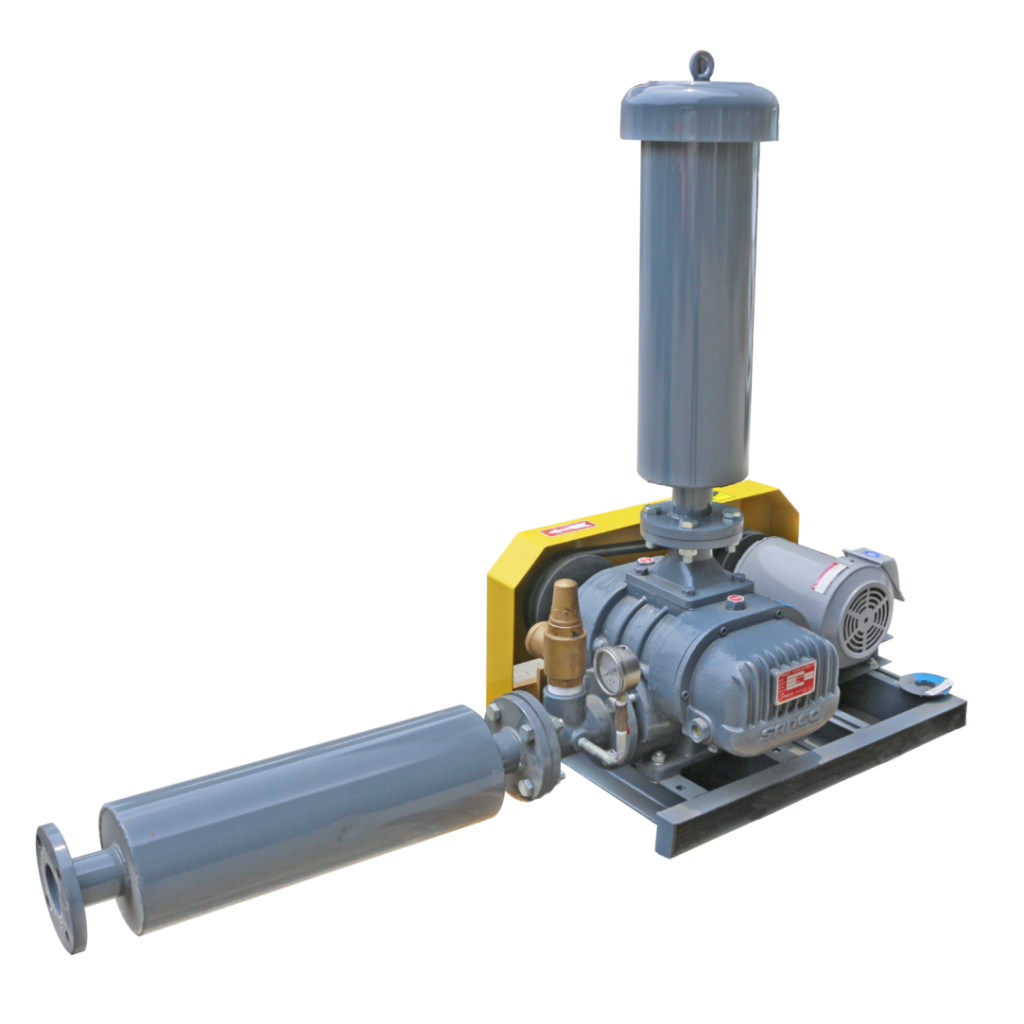

SCB SERIES

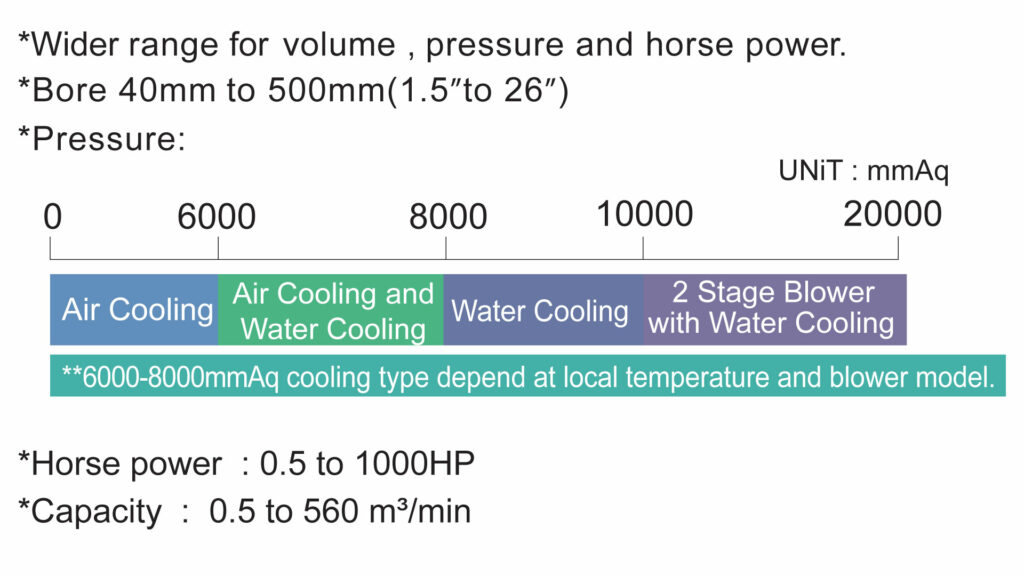

ADVANTAGE-SCB

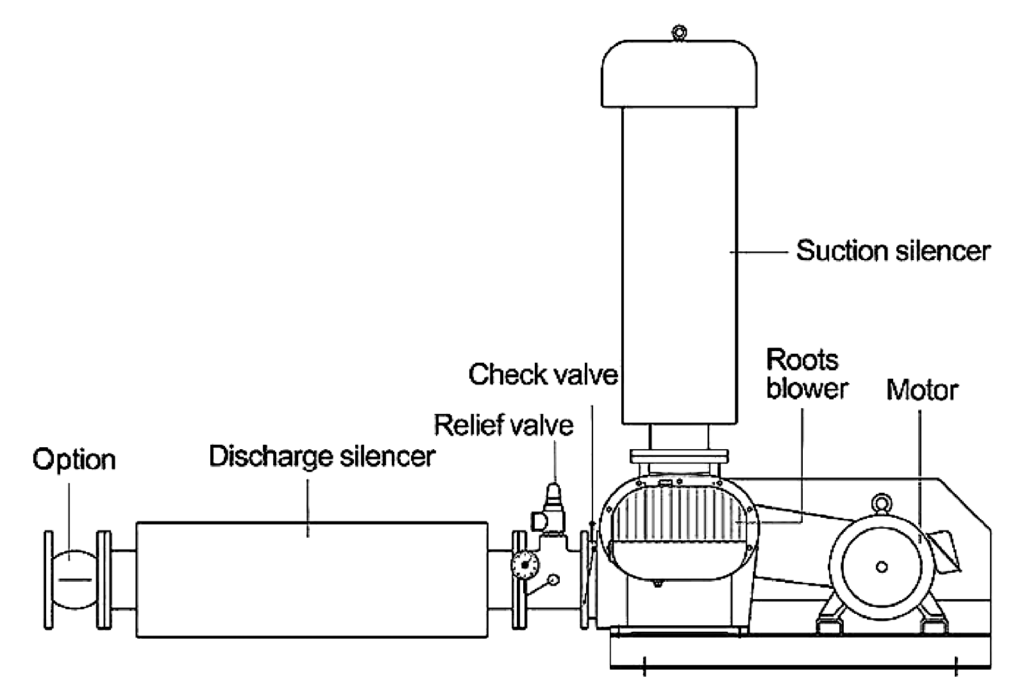

ADVANTAGE-SCB1

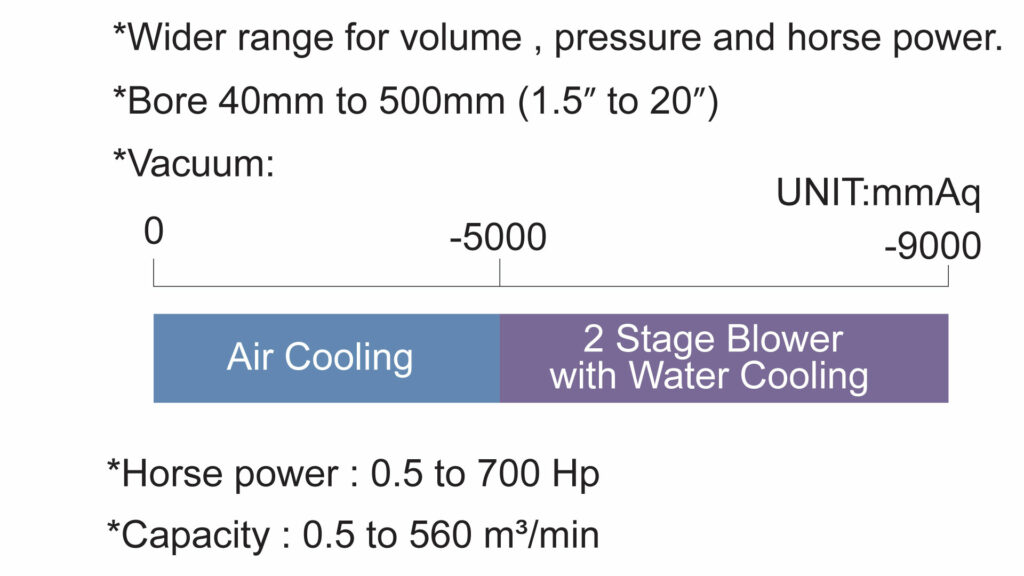

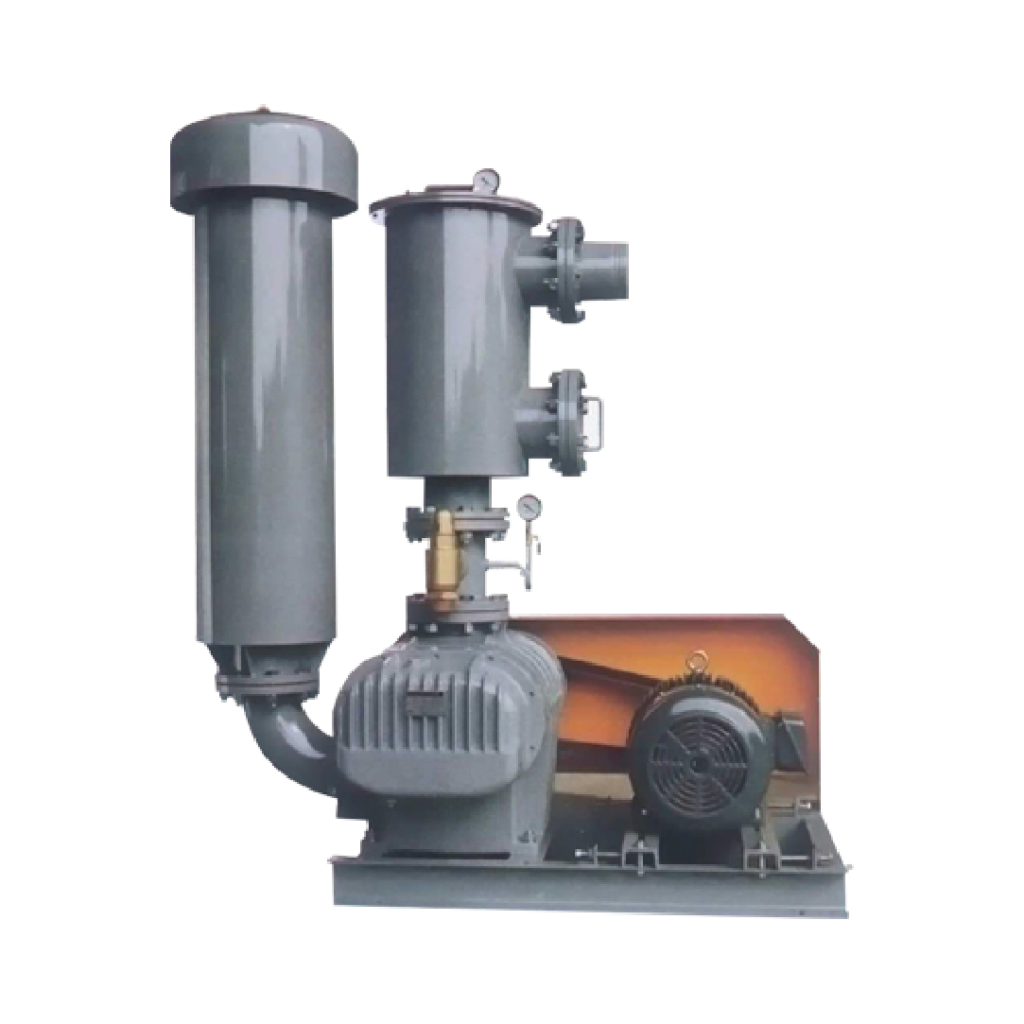

SCBV SERIES

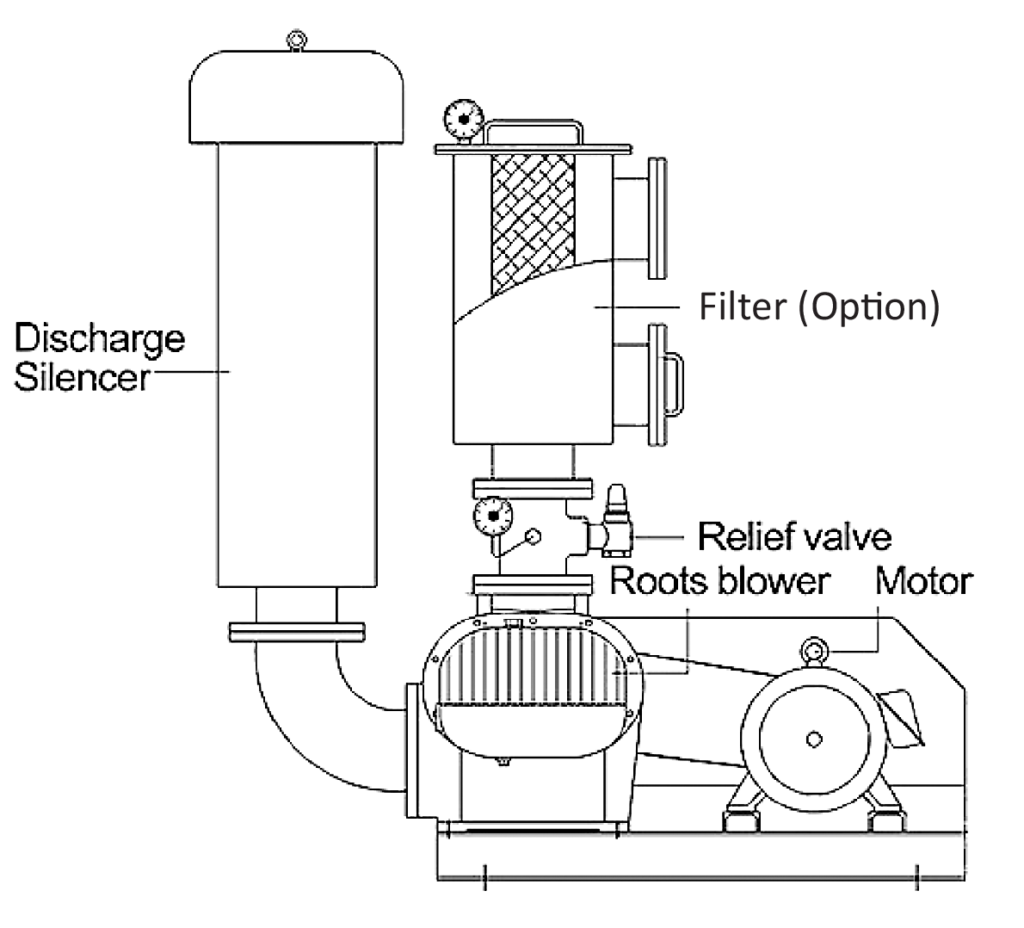

ADVANTAGE-SCBV
ADVANTAGE-SCBV

SPECIFICATIONS

SCB SERIES

Sanco Air Blower Type SCB-32,Sanco Air Blower Type SCB-40,Sanco Air Blower Type SCB-50,Sanco Air Blower Type SCB-65,Sanco Air Blower Type SCB-80,Sanco Air Blower Type SCB-100,Sanco Air Blower Type SCB-125,Sanco Air Blower Type SCB-150,Sanco Air Blower Type SCB-200,Sanco Air Blower Type SCB-250,Sanco Air Blower Type SCB-300,Sanco Air Blower Type SCB-350,Sanco Air Blower Type SCB-400

SCBV SERIES

SCBV

Standard Accessories

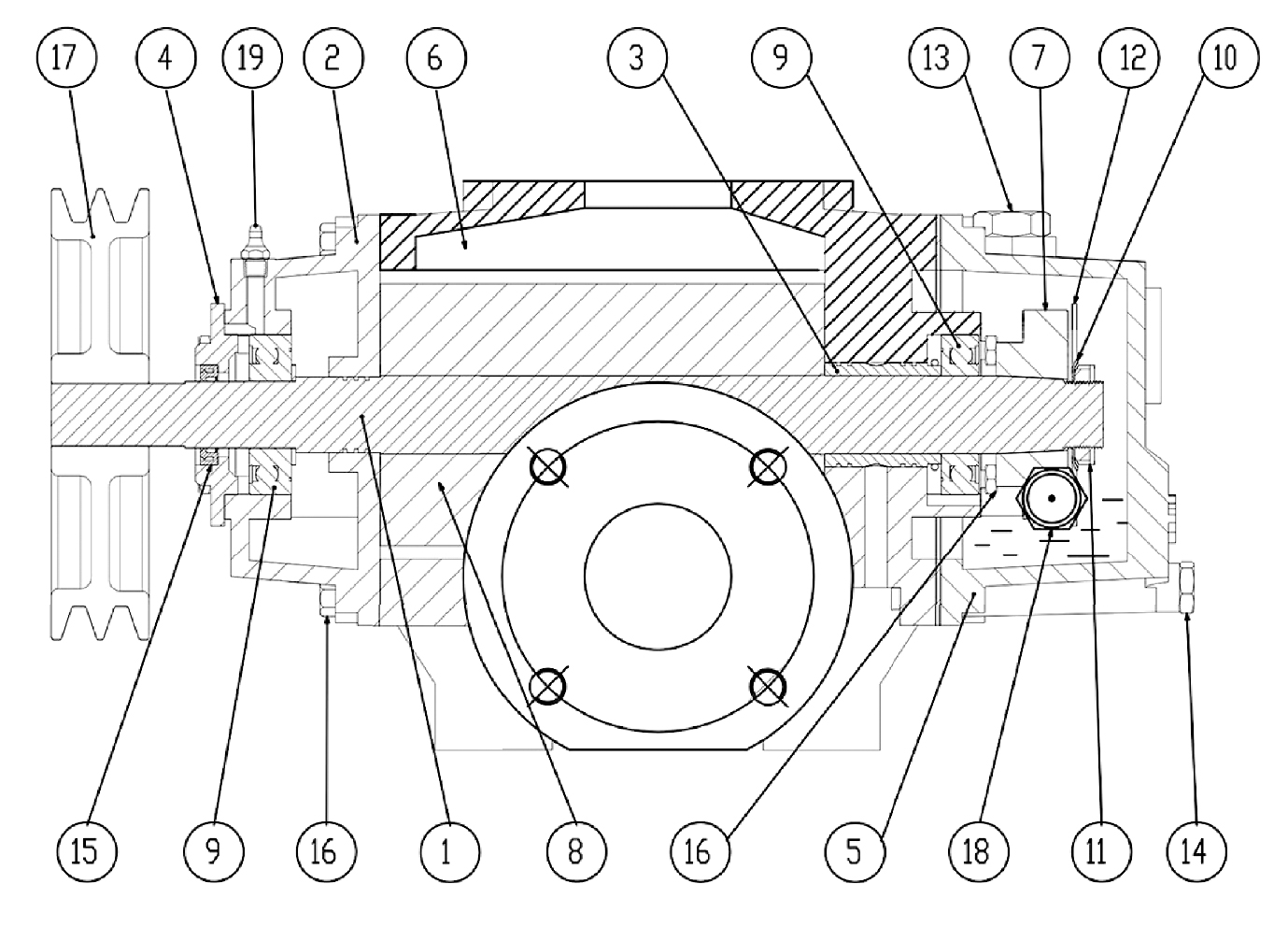

STRUCTURE & MATERIAL LIST

NO. NAME MATERIAL
1 Shaft SCM440
2 Side cover FC250
3 Labyrinth SS400
4 Seal case FC250
5 Oil case FC250
6 Main casing FC250
7 Spur gear SNCM21
8 Rotor FC250
9 Bearing SUJ2
10 Washer SS400
11 Nut SS400
12 Oil spiash SS400
13 Oil plug S45C
14 Oil drain S45C
15 Seal NBR
16 Screw SS400
17 Pulley FC250
18 Oil gauge S45C
19 Grease Fittings SA5C
