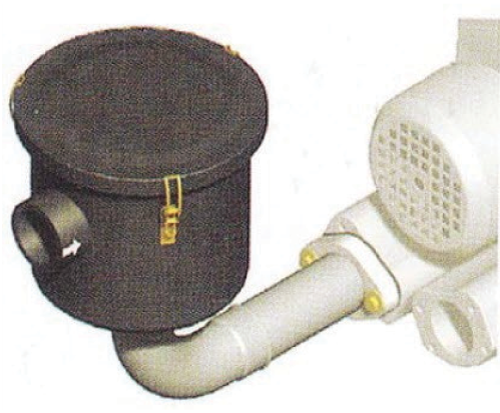

Small Compact Inlet Vacuum Filters RB Series

APPLICATIONS & EQUIPMENT

Vacuum level: Typically 1×103 mmhg (1.3×10~3 mbar)
Polyester: 99% + removal efficiency standard to 5 micron
Paper:99% + removal efficiency standard to 2 micron
Brazed fittings for High vacuum duty
Stainless steel torsion clips for durability
Low pressure drop
Positive engagement O-ring seal system
Seamless drawn housings
Large dirt holding capacity and Easy field cleaning,especially when mounted horizontally or inverted
Rugged all steel construction w/backed enamel finish
Various media
Temp (continuous): min
150F(-26C ) max 220*F ( 104C )
Filter change out differential:10″ -15’H,O over initial delta P
Pressure drop graphs available upon request

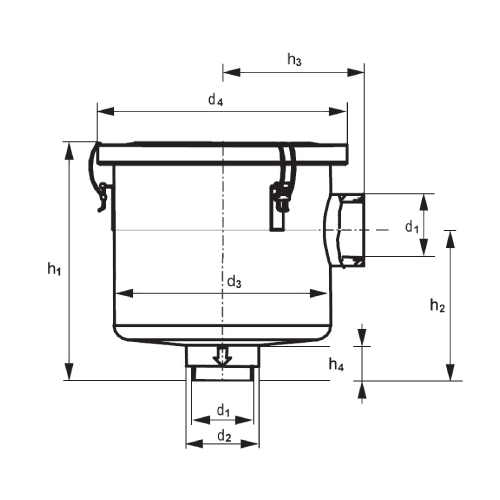

with Polyester Element	FPT Inlet &Outlet	DIMENSIONS - mm								Rated Flow	Approx.wt.
with Polyester Element	FPT Inlet &Outlet	d1	d2	d3	d4	h1	h2	h3	h4	m³/min	kg
RB-10 1 1/4"	11/4"	G1 1/4	48	125	145	116	68	77	146	1.8	1.5
RB-12 1 1/2"	11/2"	G1 1/2	53	172	188	167	111	100	16	2.4	2.3
RB-16 2"	2"	G2	68	194	217	256	129	110	20	5	4.3
RB-20 2 1/2"	2 1/2"	G2 1/2	86	194	217	256	129	110	13	6	4.3
RM-28 4"	4"	G4	123	268	272	263	147	197	74	14.7	14.5

UNITS:mm
