SCBV-50

Pressure roots blower

Performance table Qs (m³/min) PRESSURE (mm H₂O) La(kW)

TYPE	RPM	-1000 mm H₂O		-2000 mm H₂O		-2500 mm H₂O		-3000 mm H₂O		-3500 mm H₂O		-4000 mm H₂O		-4500 mm H₂O		-5000 mm H₂O
TYPE	RPM	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SCBV-50	850	0.99	0.41	0.82	0.80	0.72	0.98	0.61	1.16	0.51	1.34	0.36	1.51	0.27	1.67	0.41	1.84
	1000	1.31	0.48	1.14	0.94	1.04	1.16	0.93	1.37	0.83	1.57	0.69	1.77	0.59	1.97	0.46	2.16
	1150	1.63	0.56	1.47	1.08	1.36	1.33	1.25	1.57	1.15	1.81	1.01	2.04	0.91	2.27	0.79	2.49
	1300	1.95	0.63	1.79	1.22	1.69	1.50	1.58	1.78	1.48	2.05	1.33	2.31	1.24	2.56	1.11	2.81
	1450	2.27	0.70	2.11	1.36	2.01	1.68	1.90	1.98	1.80	2.28	1.65	2.57	1.56	2.86	1.43	3.13
	1600	2.60	0.77	2.43	1.50	2.33	1.85	2.22	2.19	2.12	2.52	1.97	2.84	1.88	3.15	1.75	3.46
	1750	2.92	0.85	2.75	1.64	2.65	2.02	2.54	2.39	2.44	2.75	2.29	3.11	2.20	3.45	2.07	3.78

Units : kW

1000 mmH₂0 = Approx 0.1 kg/cm² = Approx 0.01 MPa

1.5

2.2

3.7

5.5

7.5

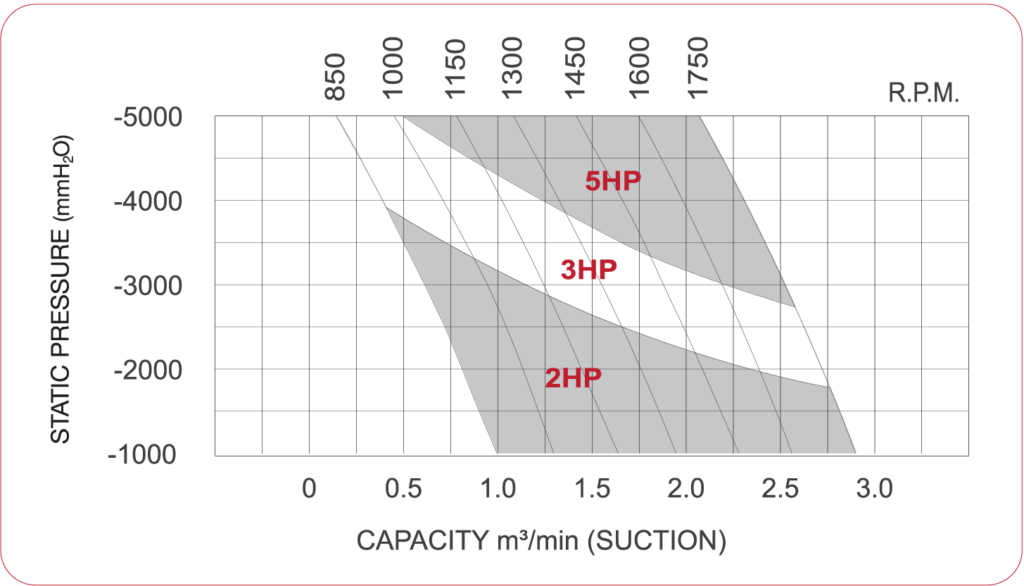

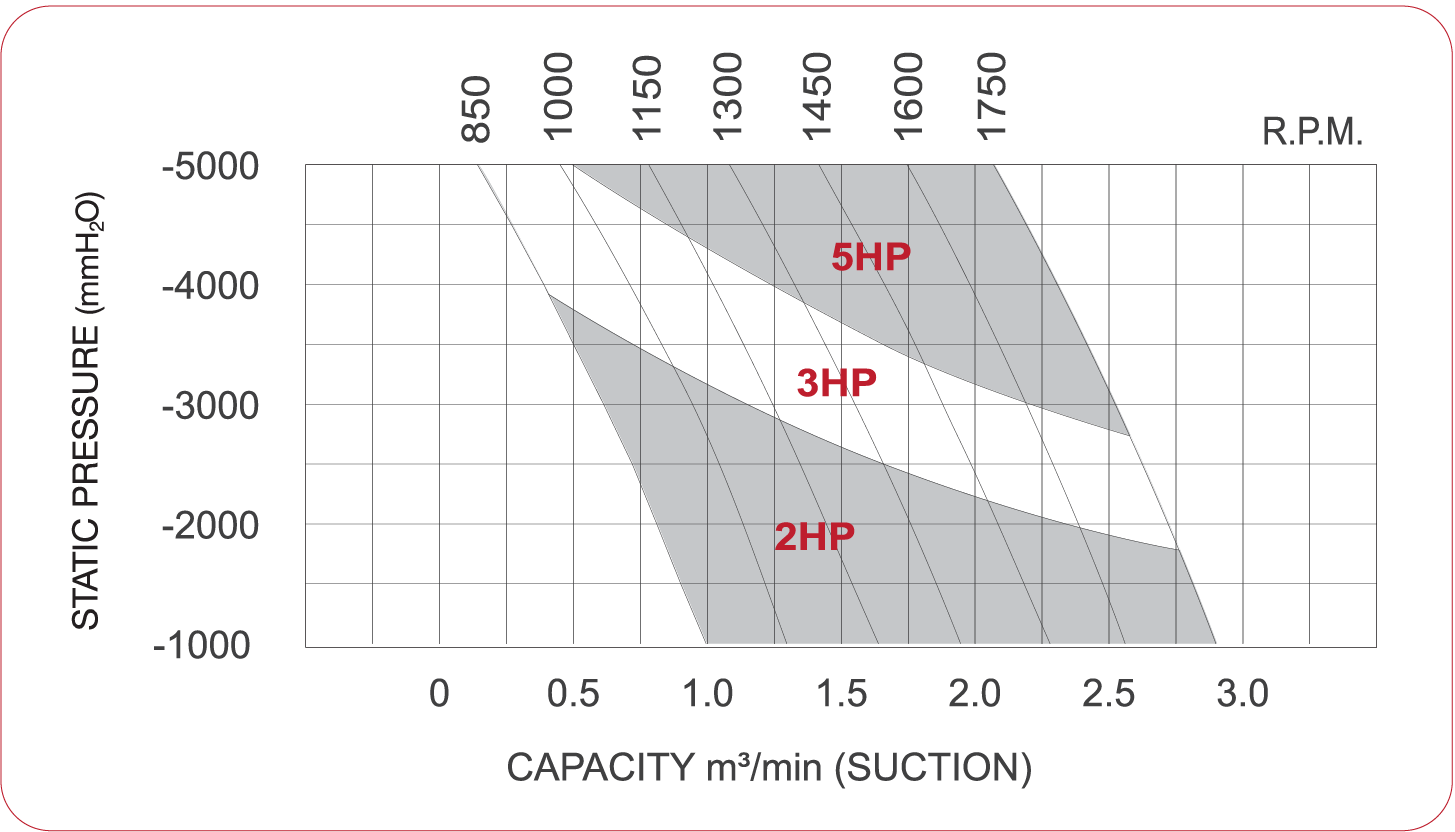

performance curve
