SCB-250

Pressure roots blower

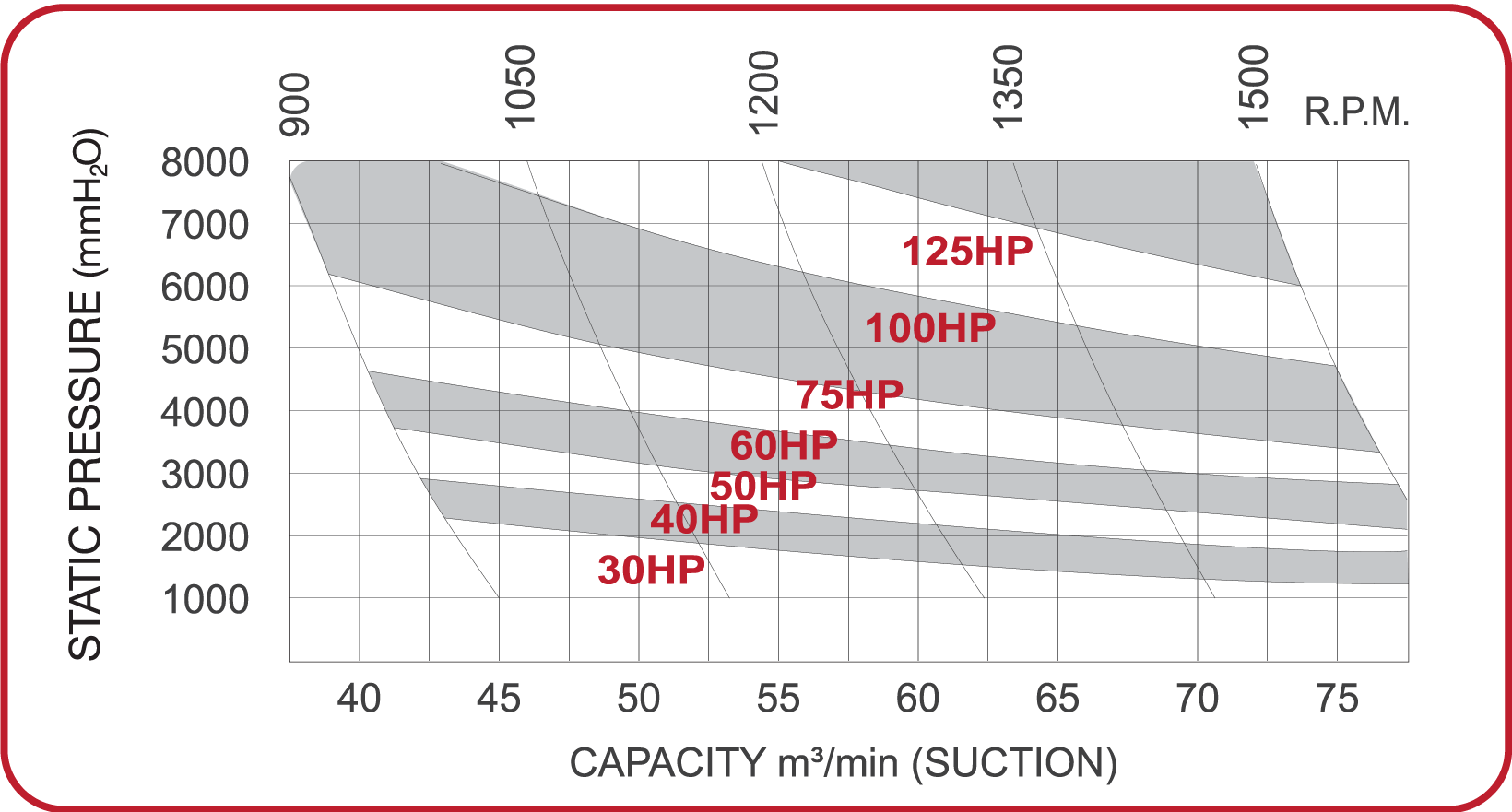

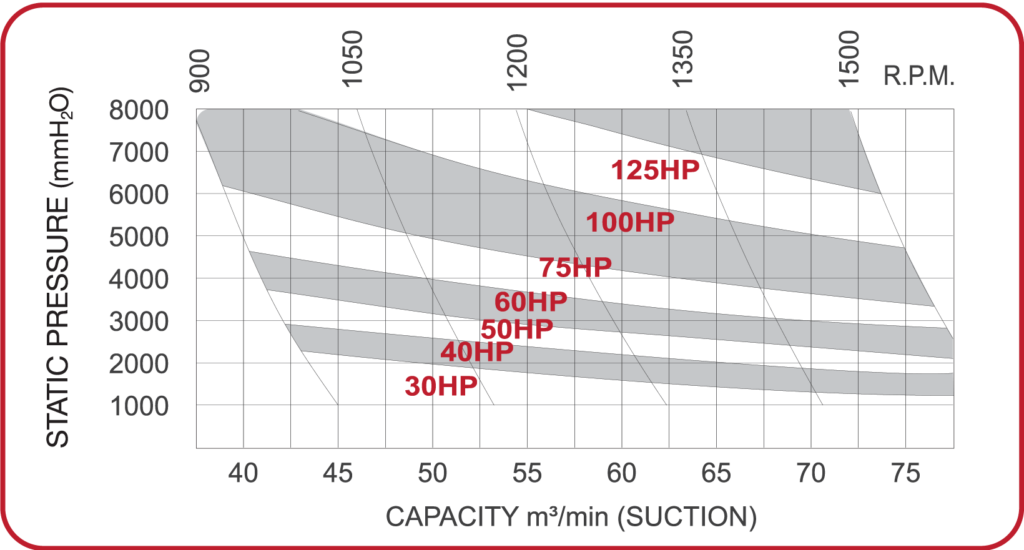

Performance table Qs (m³/min) PRESSURE (mm H₂O) La(kW)

TYPE	RPM	1000 mm H₂O		2000 mm H₂O		3000 mm H₂O		4000 mm H₂O		5000 mm H₂O		6000 mm H₂O		7000 mm H₂O		8000 mm H₂O
TYPE	RPM	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SCB-250	600	27.72	7.40	26.22	14.16	24.89	20.35	23.68	26.1	22.58	31.34	21.60	36.23	20.73	40.77	19.98	45.00
	750	36.38	9.25	34.88	17.70	33.55	25.44	32.34	32.6	31.24	3.17	30.26	45.28	29.39	50.96	28.64	56.25
	900	45.05	11.10	43.54	21.24	42.22	30.53	41.00	39.1	39.91	47.01	38.92	54.34	38.06	61.15	37.31	67.50
	1050	53.71	12.95	52.21	24.77	50.88	35.62	49.67	45.6	48.57	54.84	47.59	63.39	46.72	71.34	45.97	78.75
	1200	62.37	14.80	60.87	28.31	59.54	40.71	58.33	52.1	57.23	62.67	56.25	72.45	55.38	81.54	54.63	90.00
	1350	71.03	16.65	69.53	31.85	68.20	45.80	66.99	58.6	65.89	70.51	64.91	81.51	64.04	91.73	63.29	101.3
	1500	79.70	18.50	78.19	35.39	76.87	50.89	75.65	65.2	74.56	78.34	73.57	90.56	72.71	101.9	71.96	112.5

Units : kW

1000 mmH₂0 = Approx 0.1 kg/cm² = Approx 0.01 MPa

110

150

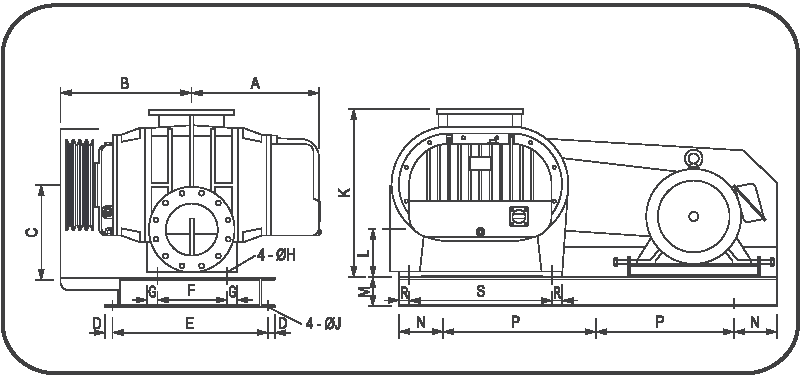

MODEL	A	B	C	D	E	F	G	H	J	K	L	M	N	P	R	S	T	WT.(Kg)
SCB-250	620	620	388	30	730	460	35	23	19	670	225	125	200	550	40	550	-	1100
