SCB-200

Pressure roots blower

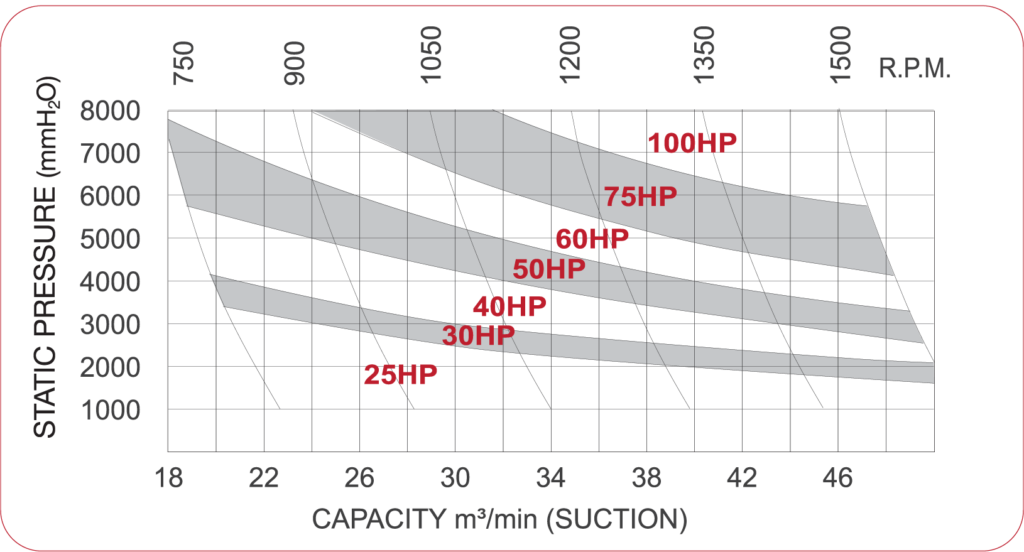

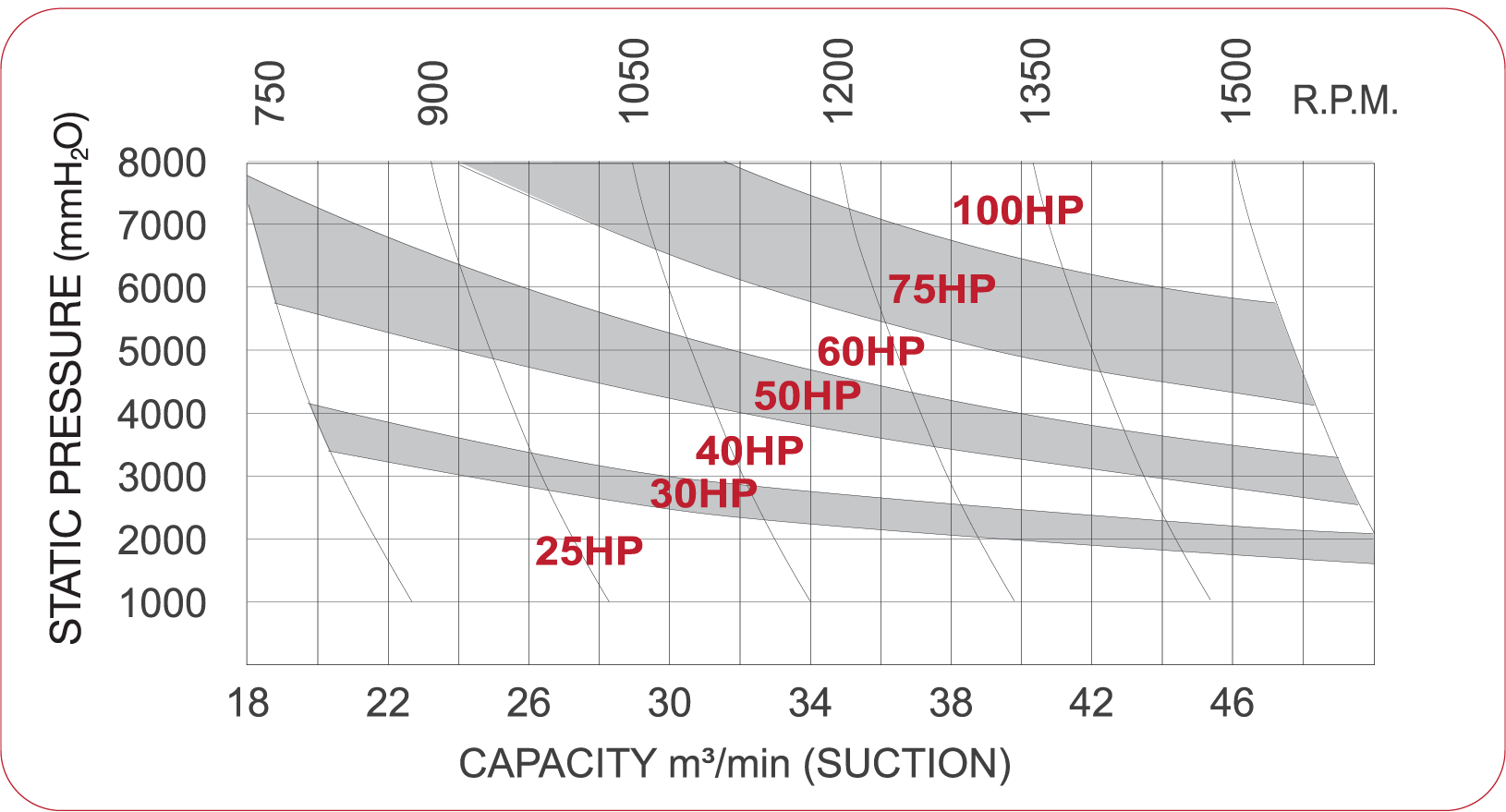

Performance table Qs (m³/min) PRESSURE (mm H₂O) La(kW)

TYPE	RPM	1000 mm H₂O		2000 mm H₂O		3000 mm H₂O		4000 mm H₂O		5000 mm H₂O		6000 mm H₂O		7000 mm H₂O		8000 mm H₂O
TYPE	RPM	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SCB-200	600	17.01	4.84	15.95	9.27	15.04	13.32	14.21	17.1	13.53	20.51	12.93	23.71	12.40	26.68	11.98	29.45
	750	22.68	6.05	21.62	11.58	20.71	16.65	19.88	21.3	19.20	25.64	18.60	29.64	18.07	33.36	17.65	36.82
	900	28.35	7.27	27.29	13.90	26.38	19.98	25.55	25.6	24.87	30.77	24.27	35.57	23.74	40.03	23.32	44.18
	1050	34.02	8.48	32.96	16.22	32.05	23.32	31.22	29.9	30.54	35.89	29.94	41.49	29.41	46.70	28.99	51.55
	1200	39.69	9.69	38.63	18.53	37.72	26.65	36.89	34.1	36.21	41.02	35.61	47.42	35.08	53.37	34.66	58.91
	1350	45.36	10.90	44.30	20.85	43.39	29.98	42.56	38.4	41.88	46.15	41.28	53.35	40.75	60.04	40.33	66.27
	1500	51.03	12.11	49.97	23.17	49.06	33.31	48.23	42.6	47.55	51.28	46.95	59.28	46.42	66.71	46.00	73.64

Units : kW

1000 mmH₂0 = Approx 0.1 kg/cm² = Approx 0.01 MPa

MODEL	A	B	C	D	E	F	G	H	J	K	L	M	N	P	R	S	T	WT.(Kg)
SCB-200	500	510	360	30	730	270	35	23	19	650	187	125	200	550	40	550	-	810
