SCB-125

Pressure roots blower

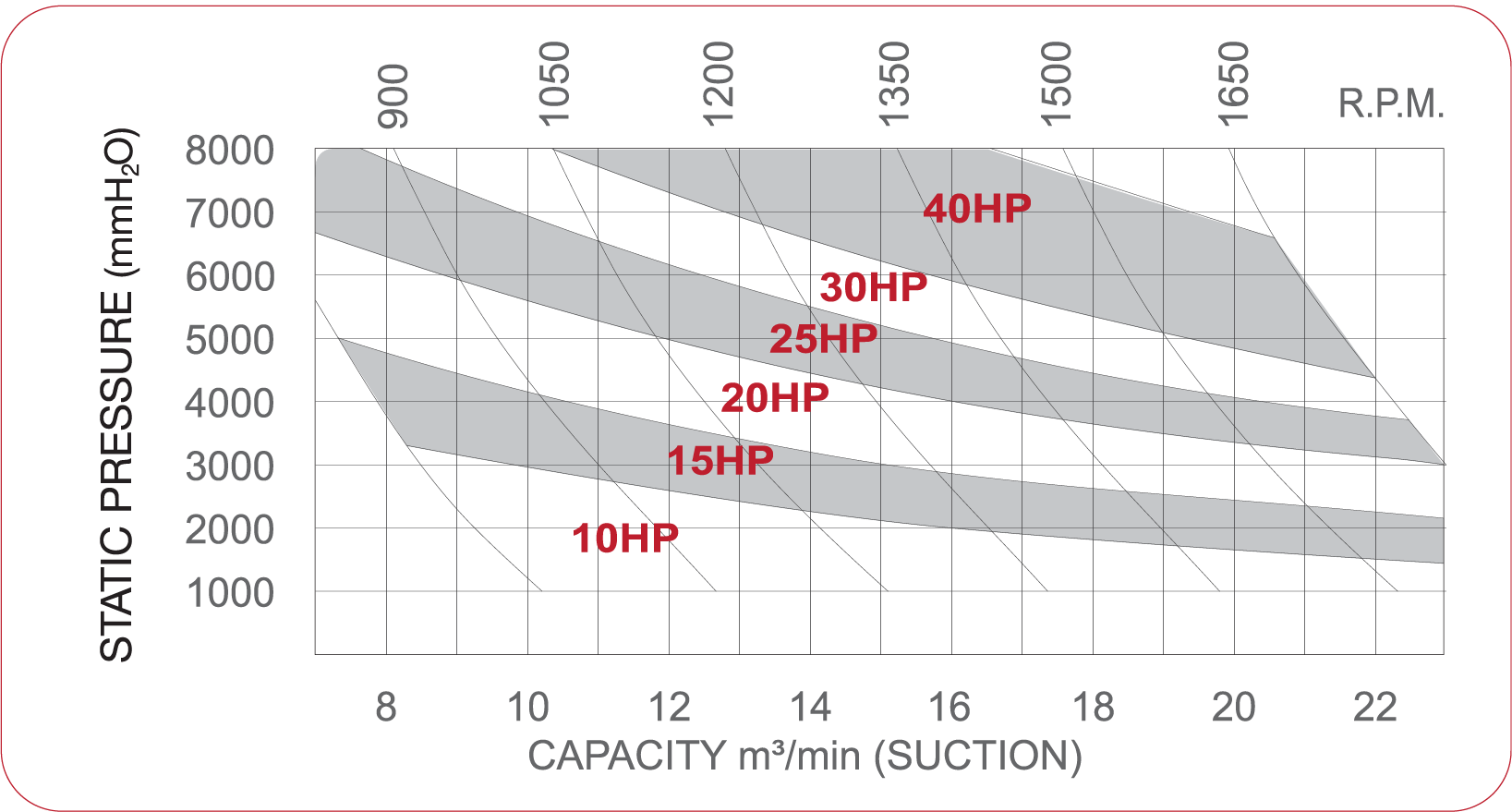

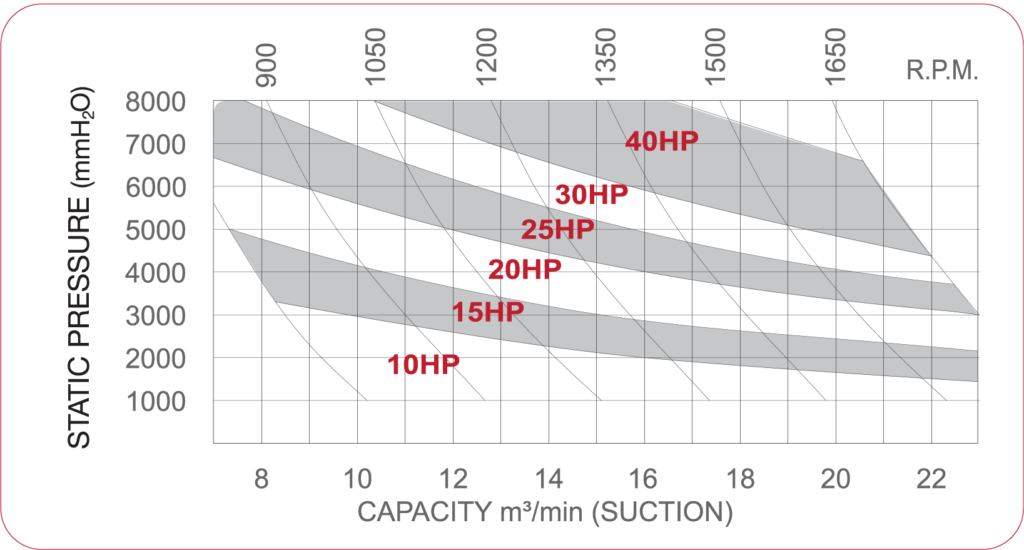

Performance table Qs (m³/min) PRESSURE (mm H₂O) La(kW)

TYPE	RPM	1000 mm H₂O		2000 mm H₂O		3000 mm H₂O		4000 mm H₂O		5000 mm H₂O		6000 mm H₂O		7000 mm H₂O		8000 mm H₂O
TYPE	RPM	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La	Qs	La
SCB-125	750	10.29	2.59	9.42	4.96	8.62	7.13	7.88	9.12	7.25	10.97	6.66	12.67	6.11	14.26	5.65	15.74
	900	12.69	3.11	11.81	5.95	11.01	8.55	10.28	11	9.64	13.16	9.05	15.21	8.51	17.11	8.04	18.89
	1050	15.08	3.63	14.20	6.94	13.41	9.98	12.67	12.8	12.03	15.35	11.44	17.74	10.90	19.97	10.44	22.04
	1200	17.48	4.15	16.60	7.93	15.80	11.40	15.07	14.6	14.43	17.55	13.84	20.28	13.29	22.82	12.83	25.18
	1350	19.87	4.66	18.99	8.92	18.19	12.83	17.46	16.4	16.82	19.74	16.23	22.81	15.69	25.67	15.23	28.33
	1500	22.26	5.18	21.39	9.91	20.59	14.25	19.85	18.2	19.22	21.93	18.63	25.35	18.08	28.52	17.62	31.48
	1650	24.66	5.70	23.78	10.90	22.98	15.68	22.25	20.1	21.61	24.13	21.02	27.88	20.48	31.38	20.01	34.63

Units : kW

1000 mmH₂0 = Approx 0.1 kg/cm² = Approx 0.01 MPa

7.5

MODEL	A	B	C	D	E	F	G	H	J	K	L	M	N	P	R	S	T	WT.(Kg)
SCB-125	440	485	310	25	605	320	25	21	19	515	155	100	20	1190	25	350	-	450
